DC Fuse

Specifications

PV String Fuses for solar panels  - 1000VDC

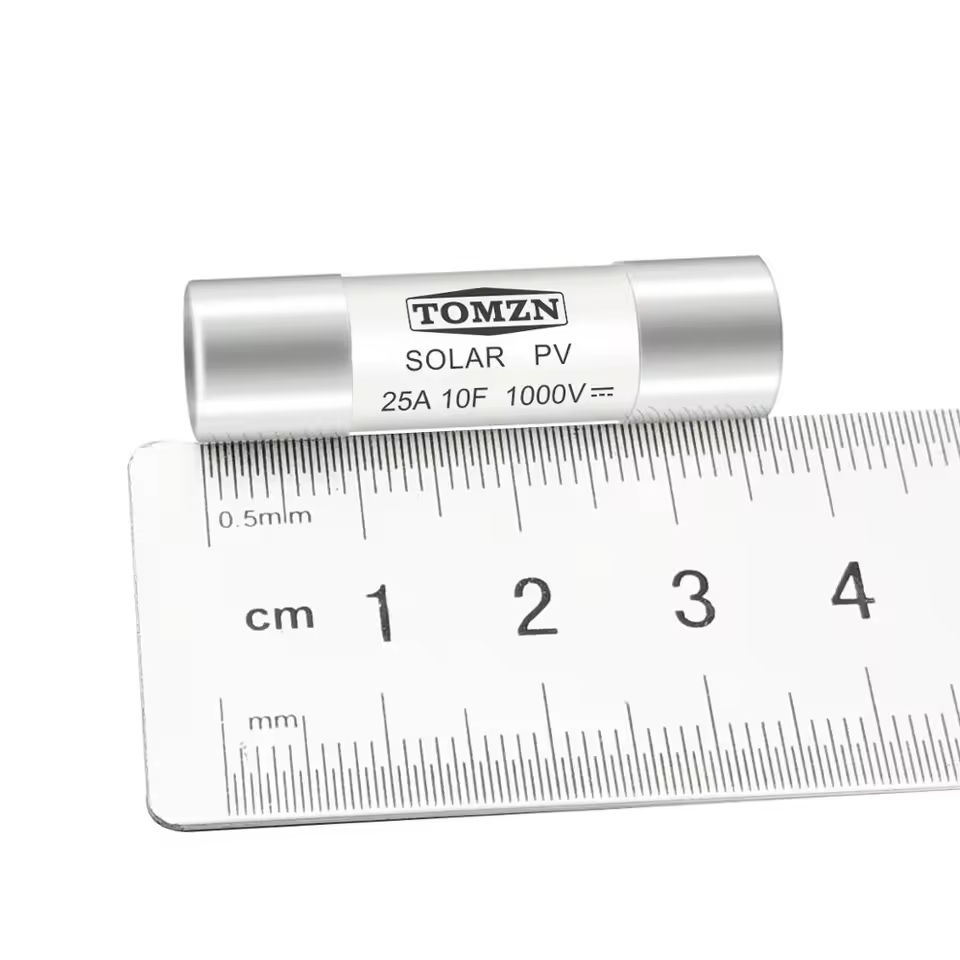

A range of fuses in a 10x38mm package specifically designer for protection and isolation of photovoltaic strings.
The DC fuses are capable of interrupting low overcurrents associated with faulted PV (reverse current, multi-array fault) string arrays.

Applications

Solar Panels, Solar Photovoltaic, DC Strings. ADVICE: Always use fuses on positive and negative terminal on any photovoltaic string rated up to 1000VDC

Electrical Characteristics
Rated voltage 1000VDC
Amps  3A,6A,10A,15A,16A,20A,25A,30A,32A
Rated braking capacity 33kA dc
Minimum interrupting rating 1.3x In
Time constant under 1ms

Standard
IEC 60269-6, EN 60947-3, DC-20B
