Trina mono crystalline half cut Solar Panel 500w
Original price was: ৳ 11,100.00.৳ 11,000.00Current price is: ৳ 11,000.00.

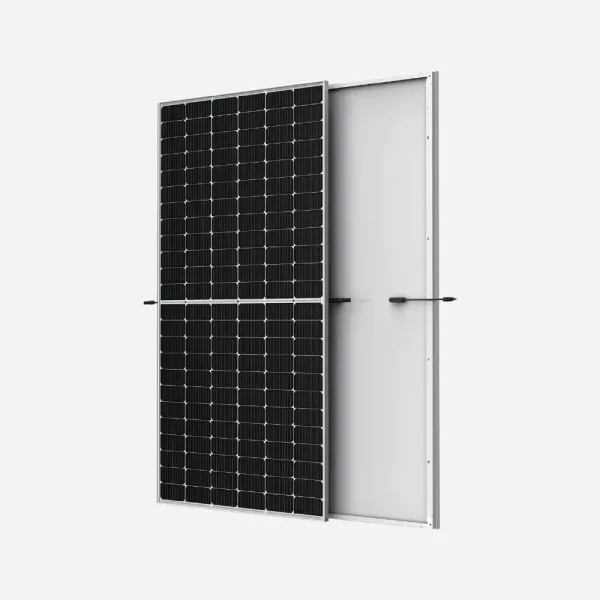

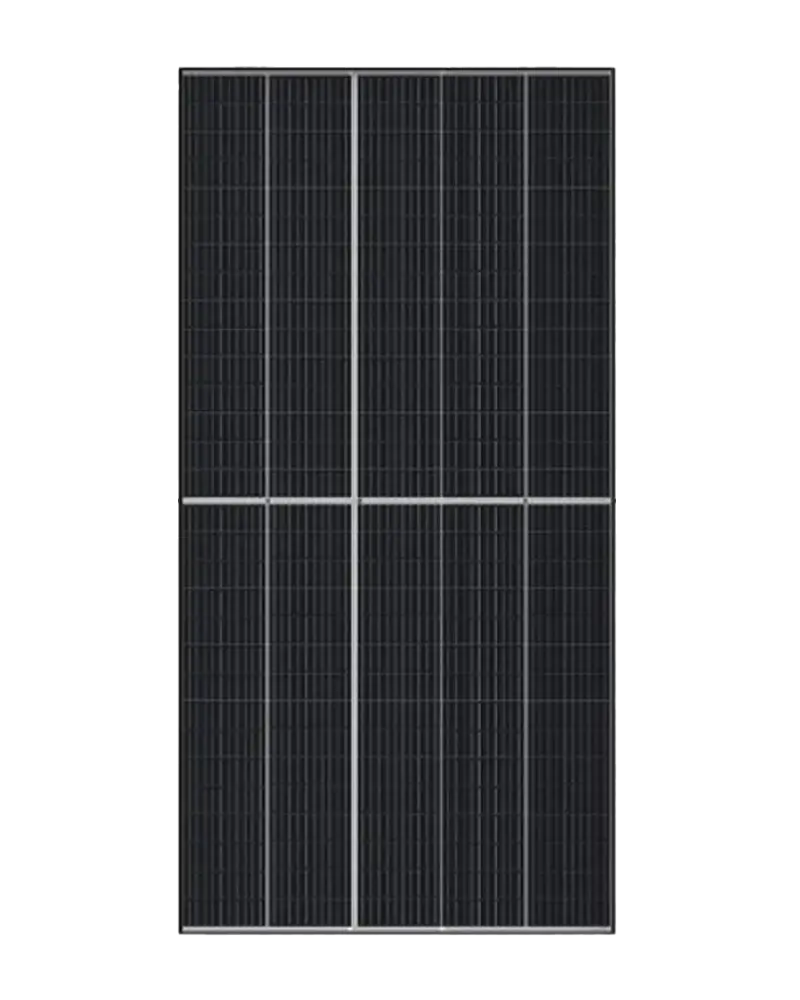

Trina Solar Panel TSM-DE18 500Watt Mono Solar Module
Out of stock
Additional information
| Weight | 27.5 kg |
|---|---|

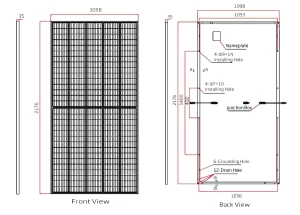

| Dimensions | 113.4 × 227.8 × 3.0 mm |
Product Datasheet
Product Details
|
Peak Power Watts-PMAX (Wp) |
480 |
485 |
490 |
495 |
500 |
505 |
| Maximum Power Voltage-VMPP (V) |
42.0 |
42.2 |
42.4 | 42.6 | 42.8 | 43.0 |
| Maximum Power Current-IMPP (A) | 11.42 |
11.49 |
11.56 | 11.63 | 11.69 | 11.75 |
| Open Circuit Voltage-VOC (V) | 50.8 | 51.1 | 51.3 | 51.5 | 51.7 | 51.9 |
| Short Circuit Current-ISC (A) | 11.99 | 12.07 | 12.14 | 12.21 | 12.28 | 12.35 |
| Module Effciency η m (%) | 20.1 |
20.3 |
20.5 |
20.7 |
20.9 | 21.1 |
| Power Tolerance-PMAX (W) |
0 ~ +5 |
|||||
| Frame |
35 mm (1.38 inches) Anodized Aluminium Alloy |
|||||
| Cables | Photovoltaic Technology Cable 4.0mm(0.006 inches) | |||||
| WARRANTY |

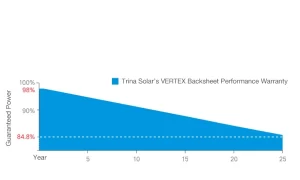

12 year Product Workmanship Warranty, 25 year Power Warranty |
|||||
| ELECTRICAL DATA (NMOT) | ||||||
| Maximum Power-PMAX (Wp) |
363 |
367 |
371 |
375 |
379 |
382 |
| Maximum Power Voltage-VMPP (V) |
39.6 |
39.8 | 40.0 |
40.2 |
40.4 | 40.6 |
| Maximum Power Current-IMPP (A) | 9.15 |
9.20 |
9.26 |
9.32 |
9.37 | 9.43 |
| Open Circuit Voltage-VOC (V) |
48.0 |
48.2 |
48.4 |
48.6 |
48.8 |
49.0 |
| Short Circuit Current-ISC (A) | 9.65 | 9.72 | 9.77 |
9.83 |
9.89 | 9.94 |
